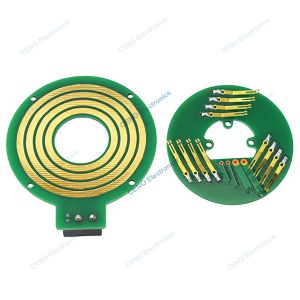

PCB-style Pancake Slip Ring with electric power & CAN signal for robotic arm

Brand Name : CENO

Model Number : PSCN020-02P1-02S-B

Certification : CE,RoHS,UL,ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T,Paypal,Western Union

Supply Ability : 10000pcs per month

Delivery Time : 2 weeks

Packaging Details : Carton/As request

Current & Circuits : 2 circuits * 5A; 2 circuits * Can signal

Rating Voltage : 0~100VAC/VDC

Dielectric strength : ≥300VAC@50Hz

Isolation resistance : ≥100MΩ@100VDC

Electrical noise : ≤30mΩ (50rpm)

Operating speed : 0~80rpm

Contact material : Precious metal

Materials : FR-4

Working temperature : -20°C~+60°C

Working humidity : 60%

IP protection grade : IP00

Through hole size : Ø20mm

Outer diameter : Ø56mm

Lead wire size & length : As customized

Contact Now

PCB-style Pancake Slip Ring with electric power & CAN signal for robotic arm

PSCN020-02P1-02S-B is CENO pancake slip ring with 4 circuits electric power and signal. Due to it’s unique structure, pancake slip ring offer notable features, like ultra-thin and compact structure, and save axial space, it’s their most prominent advantage. Their low overall height makes them ideal for applications where axial space is limited but radial space requirements are minimal, such as the turntables and within robotic arm and joints. Fore more information about CENO slip ring please contact us.

Features

  1. Through hole to 500mm and optional
  2. Solve space constraints and achieve multifunctional high-density integrated
  3. Improve reliability in harsh environment and install easy

Applications

  1. Automatic machine
  2. Robot joints
  3. Precision CNC rotary table
  4. Indexing plates
  5. Medical equipment

Optional

  1. Circuit, Voltage, Current
  2. Signals and data
  3. Contact / Housing Materials
  4. Inner / outer bore size
  5. Working speed & temperature




Specification

PSCN020-02P1-02S-B Specification
Current & Circuits 2 circuits * 5A; 2 circuits * Canbus Signal
Rating Voltage 0 ~ 100 VAC/VDC
Dielectric strength ≥300VAC@50Hz
Isolation resistance ≥100MΩ@100VDC
Contact resistance wave ≤ 30mΩ (50rpm)
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP00
Operating speed 0~80rpm
Inner diameter Ø20mm
Contact material Gold to gold
Housing material FR4
Rotation way Flange installation



Outline drawing
PCB-style Pancake Slip Ring with electric power & CAN signal for robotic arm



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
